I am wondering how to handle mapping to SNOMED CT when importing data from a source system into our CDR. More specifically how and where to store:
The original value from the source system
The SNOMED CT code
Potentially the SNOMED CT term
One possible approach is
Using DV_TEXT.value to store the original value from the source system.

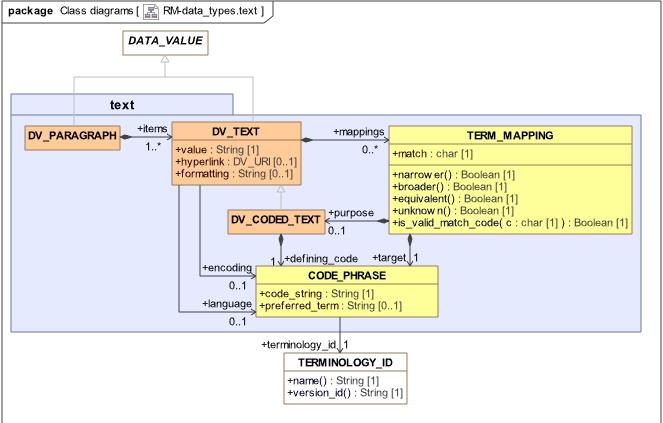

Using TERM_MAPPING, with its associated CODE_PHRASE, as target term, to store the mapped SNOMED CT code, and possibly also the SNOMED CT term. We would also use TERM_MAPPING.match to indicate the relationship between the original text and the SNOMED CT concept.
Questions
-
Is this a reasonable and recommended way to model terminology mappings in openEHR when wanting to preserve the original source value?
-
Should we store both the SNOMED CT term and the SNOMED CT code, or is the code alone sufficient?
I have found the following threads, and in my understanding I belive they support our thinking? Gladly except any clarification on the content of these therads, and if and how the relate to my question.
How to make mappings easier to query and to document in openEHR - Specifications / Terminology - openEHR
Storing codes of two external terminologies - Specifications / Terminology - openEHR
1 Like
I guess that Archetype designer does not support setting constraints on TERM_MAPPINGS, is that correct? Is it a planned feature? (ping @borut.fabjan or somebody else at Better)
@OscarKarlsson can you supply the template and the list of mappings that you want to be able to add to a template node? Then perhaps somebody OET/ADL savvy (or an AI) could show how to modify/enrich the raw ADL (or OET?) to include TERM_MAPPING based constraints.
Does any OET/ADL expert in the forum know it this would work fine in both ADL 1.x (OET?) and ADL2.x templates?
No, I don’t believe it does..
The attribute I want to map is “route” (“administreringsväg”).
In the template, I have added a value set to this attribute. The value set contains the different administration routes available in the source system. I have added it as a list of strings.
You can find the list and the mapping below.
| Source system |
Terminolgy |
Code |
|
|
|
|
|
|
| intramuskulärt |
Snomde-CT |
78421000 |
| peroralt |
Snomde-CT |
26643006 |
| intravenöst |
Snomde-CT |
47625008 |
| intrathecalt |
Snomde-CT |
72607000 |
| intraperitonealt |
Snomde-CT |
38239002 |
| intraarteriellt |
Snomde-CT |
58100008 |
| subcutant |
Snomde-CT |
34206005 |
| intrapleuralt |
Snomde-CT |
372469009 |
| sublingualt |
Snomde-CT |
37839007 |
| percutant |
Snomde-CT |
45890007 |
| intravesicalt |
Snomde-CT |
372471009 |
| intralesionalt |
Snomde-CT |
372466002 |
| topicalt |
Snomde-CT |
6064005 |
| intracutant |
Snomde-CT |
|
| IV infusion |
Snomde-CT |
47625008 |
| IV injektion |
Snomde-CT |
47625008 |
| IV infusor |
Snomde-CT |
47625008 |
| Oralt (apotek) |
Snomde-CT |
26643006 |
| Ă–gondroppar |
Snomde-CT |
54485002 |
| Mixtur |
Snomde-CT |
|
OrdineradMedicinskOnkologiskBehandling_MedKurdag.opt (436.3 KB)
OrdineradMedicinskOnkologiskBehandling_MedKurdag.oet (19.7 KB)
OrdineradMedicinskOnkologiskBehandling_MedKurdag.t (1).json (197.3 KB)
