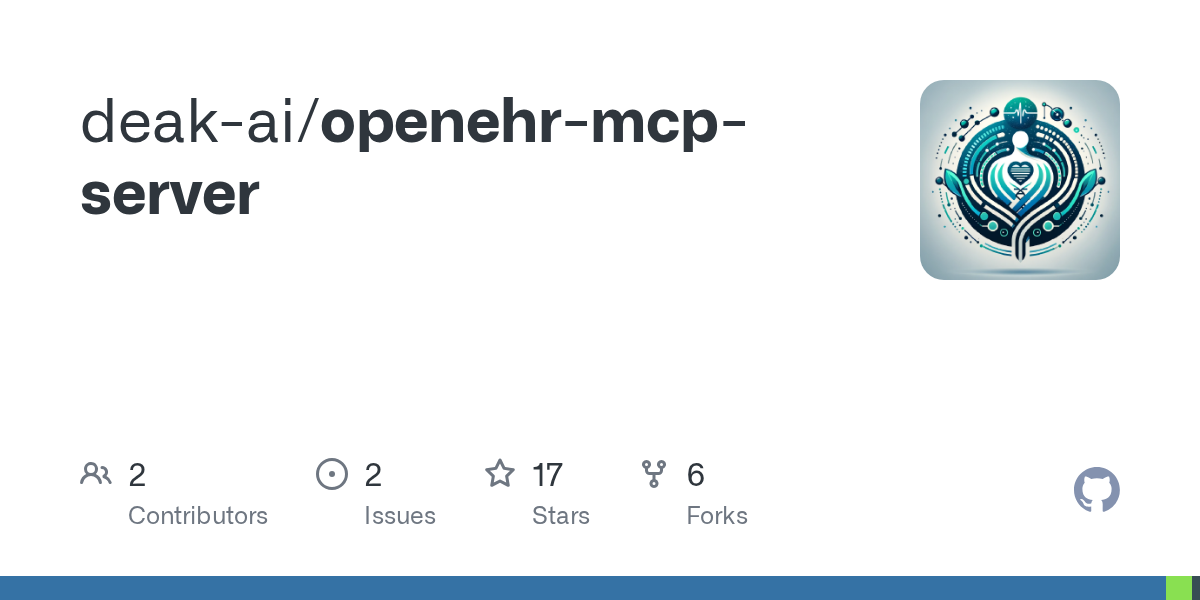

I would like to announce an open-source Model Context Protocol (MCP) server for openEHR that I developed as part of my learning journey at @Sidharth_Ramesh 's excellent openEHR bootcamp:
MCP is an emerging standard for connecting external systems with large language models (LLMs), often described as the “USB-C port for AI”, and has demonstrated significant adoption in recent months (see https://modelcontextprotocol.io/ for more information).
The openEHR MCP Server enables composition creation for any template available on the server. Here is an example conversation using a simple vital signs template I used for testing:
@joostholslag discovered this work by chance and suggested bringing it to the community’s attention.
While this remains alpha-stage software, I was surprised by the effectiveness of the LLM-MCP integration (tested with Claude so far) in generating compositions from natural language based on template data and example compositions obtained from the EHRbase server.
I welcome your feedback, particularly if you’re able to test the implementation. Several development directions are possible, as already discussed with Joost:
AQL support (though we agreed that starting with stored queries would be safest)
Complete mapping of openEHR OpenAPI endpoints
Support for additional CDRs
Looking forward to your thoughts and contributions.
Oliver
If nothing else, This is a really great training tool, allowing someone to get started quickly and ‘tweak’ the resulting code.
The idea of generating examples with natural language is quite appealing - hooking up to SNOMED via FHIR Terminology services might be another extension that would help here.
We can definitely hook this up to multiple CDRS. There is already quite a high degree of conformance between ehrBase and Better CDRs, with just a few fairly minor discrepancies .
One question @odeak asked me was whether he should support other formats than flat webtemplate for compositions. We concluded that this is probably the easiest format for LLMs to work with. And other clients could ask the CDR to return the composition in another format. But I’d be interested in dissenting opinions.
In our approach to generate examples programmatically we use constructors for different RM types that consider the OPT constraints for that object. Then with the RM instance generated we just use a serializer to get the final format.
I think if Claude, instead of generating the final resource, it can generate the code that creates the RM instance, then we can output any available format by just hooking up the corresponding serializer.
I’m that approach, Claude needs to know the RM and the OPT models, though it will depend on a specific RM SDK implementation. I think there are two or three implementations being maintained:
Thank you for the ideas and links, @pablo, I will need to dig a bit deeper.
Related to this I have looking at other LLMs on the list, especially smaller ones that can run locally, which brings additional complexities such as ensuring structured outputs, fine-tuning on RM etc. as well as infrastructure code for connecting both sides into the picture.
Though the difficult part would be to feed the ADL/OPT constraints so the generated RM instance can comply with the OPT rules (be semantically valid). Then the serialization format to whatever format (json canonical, xml canonical, flat, structured, etc) is just two lines of code.
For the OPT part, I’m guessing the LLM should know about the OPT model (openEHR-SDK/src/main/groovy/com/cabolabs/openehr/opt/model at master · CaboLabs/openEHR-SDK · GitHub), then providing specific OPTs might be understood to the LLM so it knows which constraints apply to each node of the RM. Though it will depend on the capabilities of the LLM to understand that OPT is a model of constraints over the RM and how those constraints apply to it, but it might be possible to get some results. If this is too complex for the LLM, an alternative is to explain the OPT constraints over the RM as OCL rules (object constraint language), which is common when working with object oriented models and UML.
Excellent to see this here @odeak!
I was watching this video, and it reminded me of your work:
You’ve done really well to abstract away “actions” from just the usual openEHR REST API. I think this pattern works really well with MCP-like protocols.
And I’ve seen LLMs struggle with canonical and OPTs because some of my devs also struggle with these
AQL writes that simplifies the data models even further, FTW? @sebastian.iancu
The flats are short term easy, but the moment you want to apply that to other use-cases other languages they become a problem, since the output fields result out of the template names which users change.
So in your domain easy, the moment you want to transfer learn or apply in another country its questionable if the LLM can abstract that logic (in a clean way ), there is also specific parts of the RM missing in flats on top.
Canonicals are in that regard much better, we are testing currently with both.
The moment you will have to verify your net on another dataset problems may appear.
I have pushed a new version that also supports the canonical format (in json).
A quick test with my vitals sign template and the prompt template of the mcp server showed that this works, albeit slower with Claude to populate a composition (77secs vs 45 secs for a single test), whilst the first part to process the prompt template and generate the example composition was more or less the same (25secs vs 30secs). More details can be found here:
It’s more of the semantics of the RM and the complexity of the things around the semantic models. The models, archetypes and templates are usually super simple to understand.
I think about how most of the world’s software is in English. The variables, functions etc. Much of this is authored by programmers whose native tongue is not English.
Shouldn’t templates and archetypes also be such a technical artefact? Default to English when rendering paths, and as a fallback use other languages for the paths?
LLMs are actually pretty good at translating and understanding what things mean.
But the translation / flat path problem is real though. Maybe this is why node names should have aliases in English (like variable names in code)? Think this is something ADL2 was proposing.
Check. Which RM semantics are difficult?
The semantics of compositon with an event context containing data conforming to a template is quite key. Technically possible to abstract away with sensible defaults, but that will easily mess things up. You need to understand as a developer when the defaults should be overwritten. So you have to understand the compostion model very well in order to produce clinically safe data.
The contribution and version change model I imagine could also be a struggle to understand. But this is usually abstracted away by the CDR quite well, right?
There’s also complexity in the BASE and AOM, but I guess that’s not too relevant for developers working with data and existing templates?
Aliases is ok. But English as native node ids is also an issue for versioning. Suddenly a typo correction in ab element name becomes a breaking change in an archetype..
(Can someone move this discussion to a different topic, I think we’ve gone beyond the original topic)
